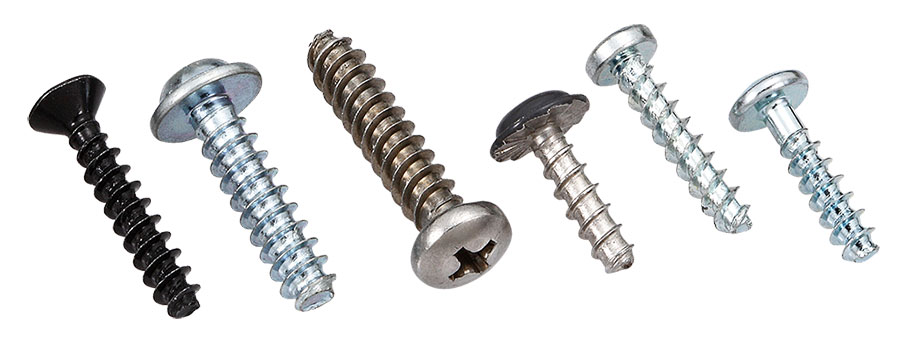

Tornillos para material plástico
- Fijación en material plástico
- Cementado templado o tratamiento térmico (HRC 33-39) obligatorio
- Disponible tornillo con cabeza pintada
Tornillos para material plástico
Descripción de Producto
| Thread size | #2 to 3/8 (M2.0 to M10) |
| Length | 3/16" to 3" (5 to 80mm) |
| Recess type |
Phil
Pozi
Torx
Hex
Hex washer |
| Head type |
Pan, Flat, Oval, Round washer, Indent hex, Indent hex washer etc.
Pan
Flat
Oval
Round washer
Indented hex
Indented hex washer |
| Thread type |
30° thread 120° root, 60° single thread, 48° twin lead thread etc.
30° thread 120° root
30° thread flat root
Single lead 45° tri-lobe thread
Twin lead 48° tri-lobe thread
Single lead 60° tri-lobe thread |
| Point |
as-rolled end
taper point |
| Finish | Zinc Plated (clear/white/yellow/black), Black Oxide etc. |
| Standard | producer's or customized designs |
| Others | case harden or through harden required |
