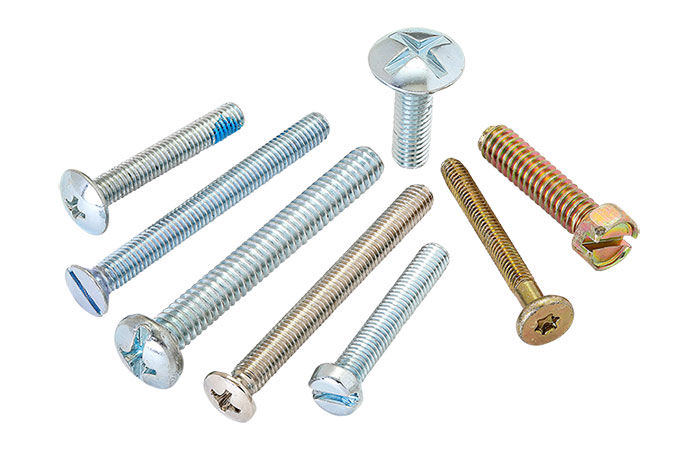

Tornillos de máquina
-
Conforme con estándares y especificaciones americanas B18.6.3 and SAE J429
-
DIN 84, 85, 963, 964, 965, 966, 7985 disponible
- Conforme con estándar ISO 898-1
Tornillos de máquina
Descripción de Producto
| Thread size | #2 to #3/8 (M2 to M10) |
| Length | 1/8" to 8" (3 to 200mm) |
| Recess type |
Phil
Pozi
Torx
Square
Slot
Slot+Phil
Slot+Hex Washer
Slot+Torx
Slot+Square
Phil+Square |
| Head type |
Indented hex washer
Raised cheese
Pan
Flat
Oval
Round
Truss
Hex flange
Hex
Round washer
Wafer
Fillister |
| Thread type |
60° thread angle, UNC, UNF |
| Point |
As-rolled end, Chamfered end, Flat point, Dog point, Cup point, Cone point, Truncated cone point, Scrape point etc. per ISO225 or ASME B18.6.2
As-rolled end
Chamfered end
Flat point
Dog point
Half dog point
Oval point
Cup point
Cone point
|
| Finish | Zinc Plated (clear/white/yellow/black/green), Black oxide, Coating (Geomet, Dacrotized, Ruspert etc.), Nickel plating, Brass plating, Zinc-Nickel or Zinc-Iron alloy plating, Nylon patch available |
| Standard | IFI, DIN84, DIN85, DIN963, DIN964, DIN965, DIN966, DIN7985, JIS, or customized designs available |
| Others | Class 4.8, 5.8, 6.8, 8.8, 10.9 or 12.9 available |
